برند : Aidite
دستهبندی : تجهیزات کدکم و لابراتواری

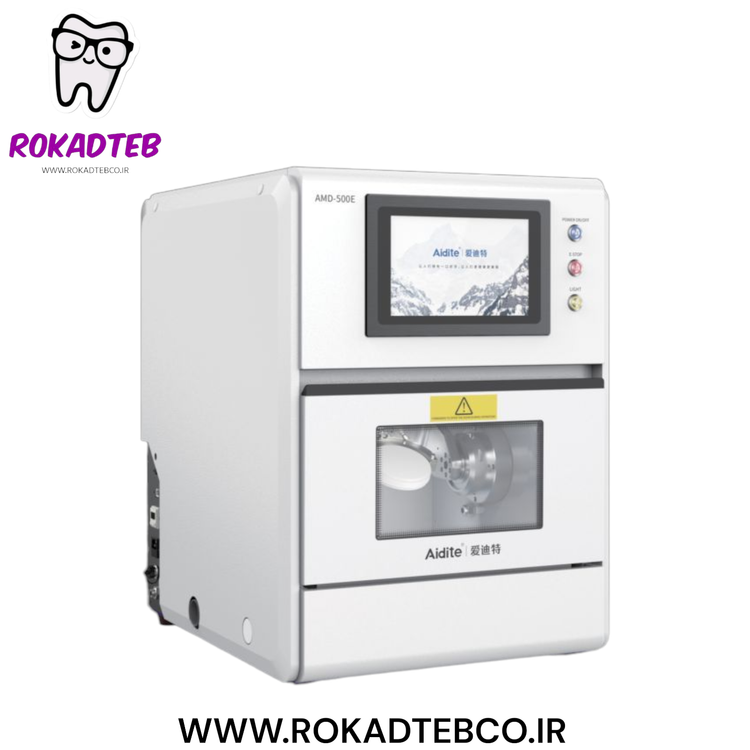

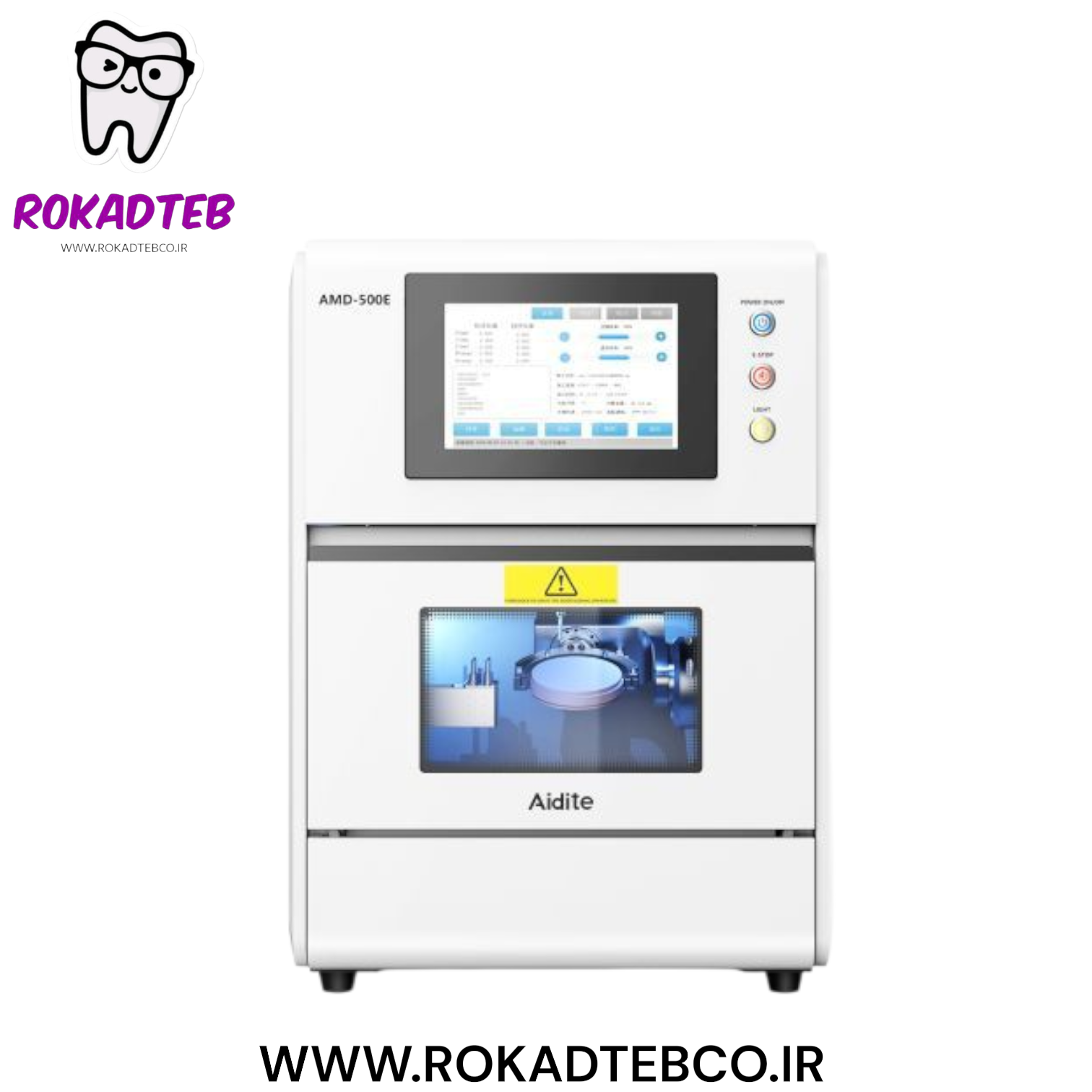

میلینگ aidite AMD-500E
aidite AMD-500E
ویژگیهای محصول
شرایط پرداخت
نقدی
اقساط
اقساط : 10 فقره چک از ابتدا
[ Aidite AMD-500E Highlights ]
All-in-one air cast aluminium platform
Modular Structure Design
Dust cover made by one-piece silicone
Multiple Fixture, Fast Switch
Large Anlie/90° Processing
Tool life management Function
Parameter
Platform |
Aviation cast aluminum |
Dimensions and weight |
520×650×720(mm) |
Weight |
120Kg |
Processing methods |
Dry milling |
Number of tools |
8 |
Dust-proof |
Integrated silicone |
Fixture Type |
Secondary fixture/98 disk(Optional)/ Block type(Optional) |
Processing material thickness |
10-35mm |
Processing material |
Zirconia,PMMA,WAX,PEEK,HPP,Soft Metal |
CAM software |
Open CAM System |
90°buccal side machining |
√ |
Motor |
Servo motor |
Air Pressure |
≥6Bar |
Power suppl rocessing Base time |
10-30mm |
Machining time |
Full Crown ＜15min，Bridge＜3h |
[ Spinde ]
Air Cooling
Max:60000RPM
500W
4mm Chuck
[ Machining angle ]
A Axis: +135°,
-30° B Axis:360°
[ Machining type ]
Crown
Bridge
Veneer
Inlay
Full contour screw retained bridge
Full arch crown bridge
[ Application scenario ]
